Everything the Utility is, scaled up for heavier work. Dual 3,500 lb Terran EZ-Lube axles, 2×6 treated wood deck, fold-flat ramp gate. Seven feet wide and as long as the job demands.

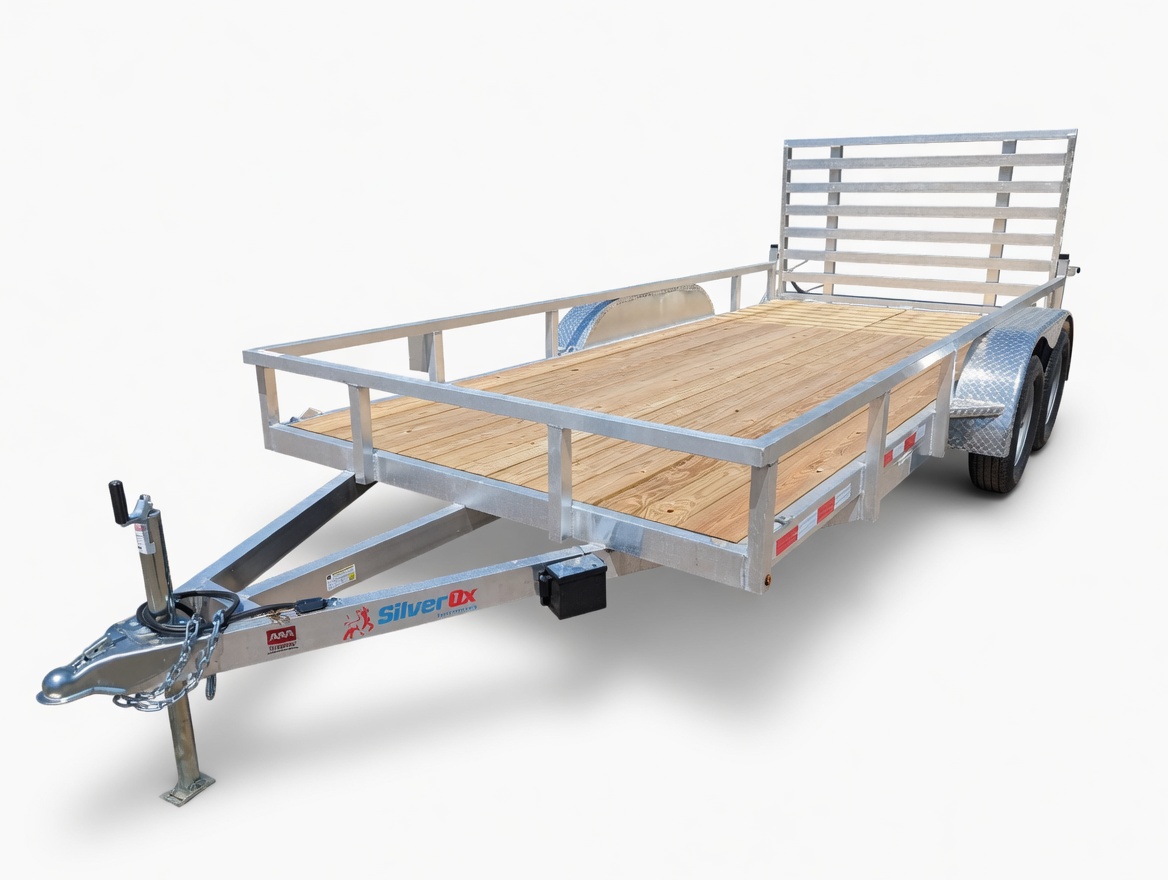

Tandem Axle — Front

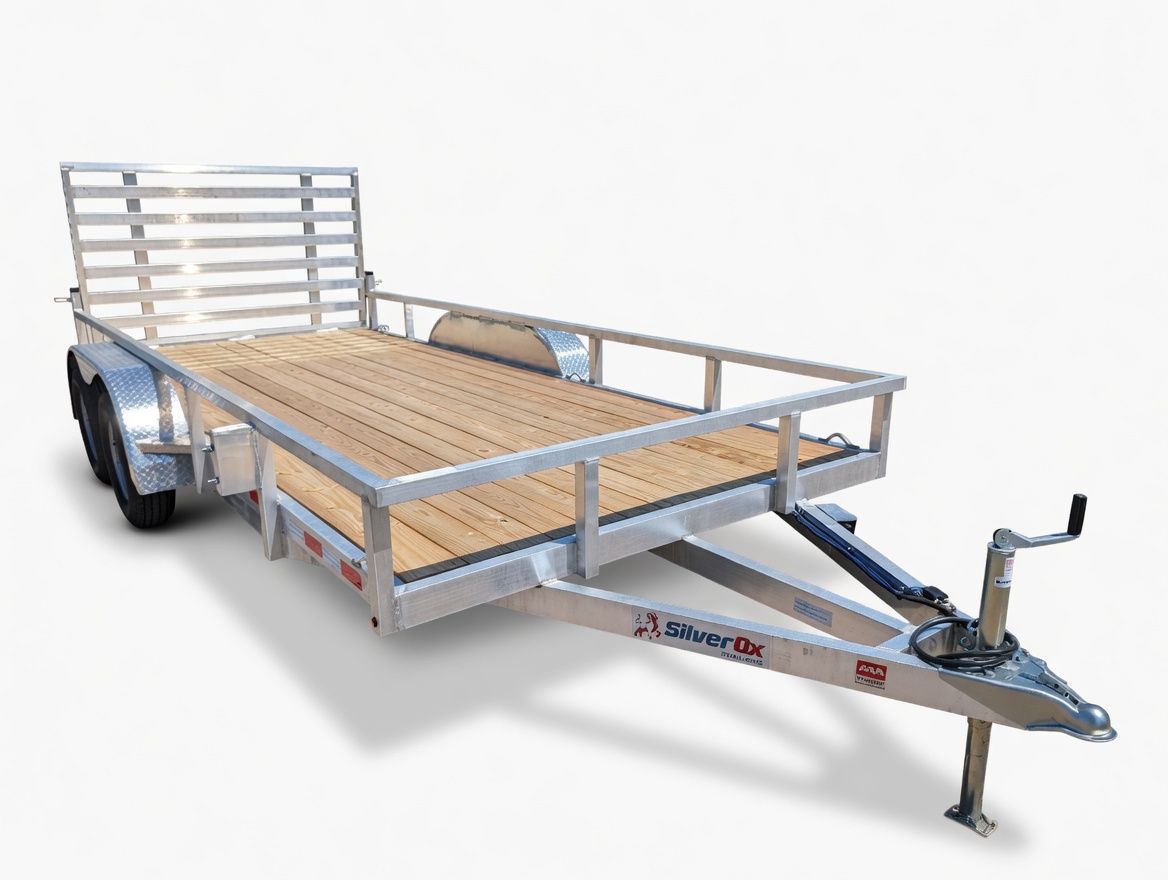

Tandem Axle — Side

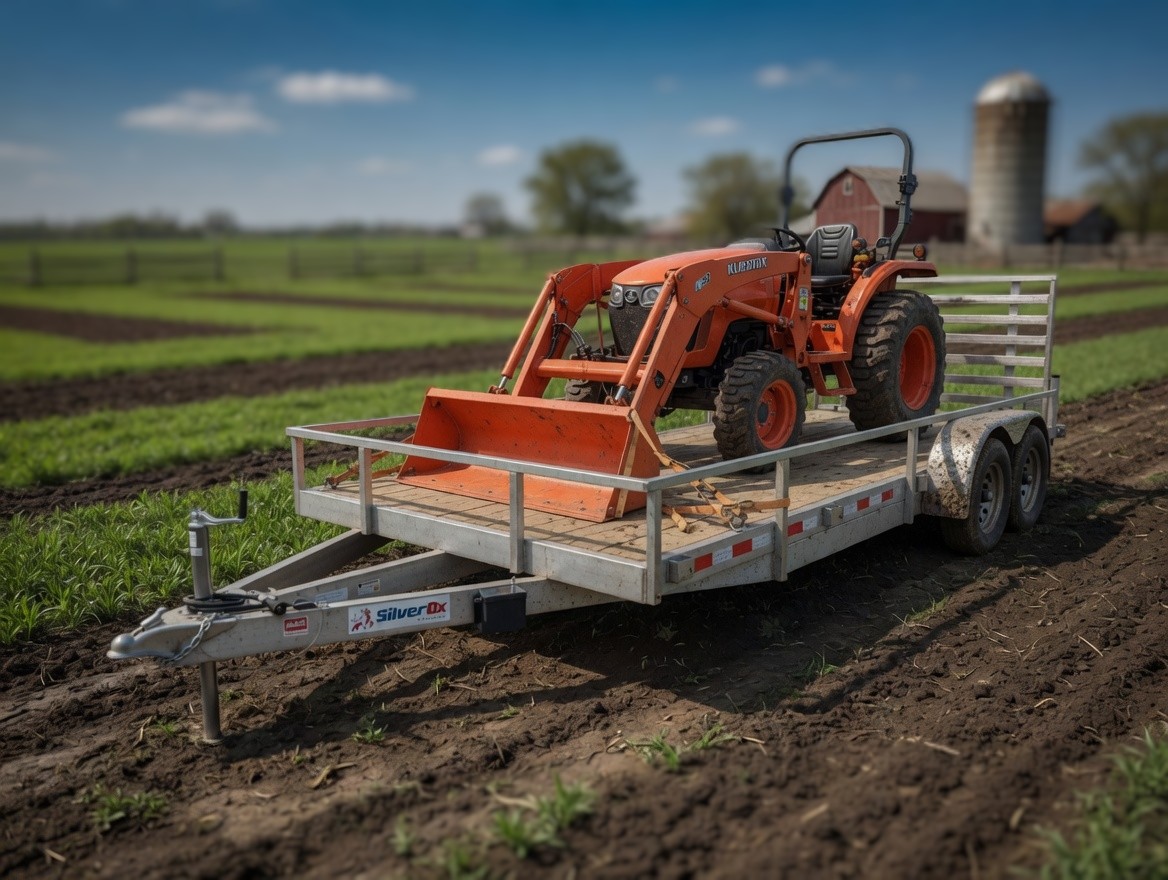

In the Field
The Silver Ox HD Utility is built for operators who need more — more deck, more payload, more axle. Fully-welded all-aluminum construction with dual 3,500 lb Terran EZ-Lube axles and a 2×6 treated wood deck. Available 7×14 through 7×22 tandem axle.
Pressure-treated boards run the full length of both sides and the nose. They give you serious containment without the weight of a steel trailer. Boards are replaceable if they ever wear out.
Not slick extruded aluminum — real 2×6 treated lumber. Grip when wet. Replaceable when worn. Better for strapping and ratcheting loads than any smooth aluminum floor.
IATF-16949 certified. E-coated not painted. 8-year spring axle warranty — three years longer than Dexter's. Grease accessible without pulling the wheel. Built to automotive OEM standards.
Three structural tubes welded as a single unit. Stiffer than the single-tube tongues most brands run — especially important on a loaded landscape trailer where flex and bounce are constant.
Every Silver Ox Woody is covered by our 3-Year Limited Warranty on frame and structural welds. That's three times the coverage most aluminum trailer brands offer. Built in Michigan. Backed in Michigan.
Every Woody ships with full LED lighting — brake, tail, marker, and clearance. 5+ year service life. No bulbs to replace. Brighter at speed than incandescent. DOT-compliant.
Higher load rating than standard LRC tires. Better sidewall strength for rough terrain, gravel pit runs, and loaded landscape work. Standard on all Woody models.
Spare tire mount welded directly to the tongue — not bolted on, not an add-on. Keeps your spare secured and out of the way whether or not you carry a spare.
Four welded D-ring tie hoops on the deck — not surface-mounted, welded into the crossmembers. Pull-test rated. Standard on every Woody. No bouncing loads, no excuses.
Most Woody configurations are in stock or in production at our Michigan facility. Less than 3 weeks from order to delivery in most cases — no 3-month waits, no dealer allocation games.
Compact tractors, skid steers, zero-turns, large ATVs — if it's too heavy for a standard utility but doesn't need a dedicated car hauler, the HD Utility is your trailer. Aluminum construction means you're hauling your equipment, not fighting trailer weight.
| Model | Axle Config | Deck Size | GVWR | Curb Wt. | Payload | Electrical |
|---|---|---|---|---|---|---|
| 7×14 TA | 2 × 3,500 lb | 82″×168″ | 7,000 lb | 1,350 lb | 5,650 lb | 7-Way Round |
| 7×16 TA | 2 × 3,500 lb | 82″×192″ | 7,000 lb | 1,450 lb | 5,550 lb | 7-Way Round |
| 7×18 TA | 2 × 3,500 lb | 82″×216″ | 7,000 lb | 1,478 lb | 5,522 lb | 7-Way Round |
| 7×20 TA | 2 × 3,500 lb | 82″×240″ | 7,000 lb | 1,523 lb | 5,477 lb | 7-Way Round |
| 7×22 TA | 2 × 3,500 lb | 82″×264″ | 7,000 lb | 1,648 lb | 5,352 lb | 7-Way Round |
TA = Tandem Axle · Integrated 3,500 lb fold-flat ramp and 2×6 treated wood deck standard on every model · See your authorized Silver Ox dealer for current pricing and availability
| Aluminum Wheel Upgrade — Per Axle | Polished aluminum wheels in place of steel. Significant weight reduction and a sharper appearance. |
| Aluminum Spare Tire & Wheel | Matching aluminum spare to go with the wheel upgrade. |
| Matching Steel Spare Tire & Rim | Spare on a steel rim sized to your trailer. Keep it mounted on the tongue. |
| Standard Ramp Gate (included) | Single-section aluminum fold-flat gate. Opens to ground level for loading, folds flat onto the deck when transporting empty. Spring-loaded latch pins secure it in both positions. Included on all Utility models. |
| Bi-Fold Ramp Gate | Two-section gate that folds in half for storage — longer overall ramp length means a lower, easier loading angle for ATVs and equipment. Also folds flat when towing, reducing wind drag compared to the standard gate. |
| HD Ramp Gate | Built with heavier-gauge aluminum square tubing for higher load capacity than the standard gate. Best for heavier equipment where gate strength matters. Folds flat onto the deck when not in use. |
| Oxtail Standard Gate | Short 30″ ramp gate with 2 hinges, rated 3,000 lb — carries more than the standard gate and is lighter to lift. Usually paired with a dovetail deck to keep the loading angle gentle, but not required. |
| Oxtail HD Gate | Short 30″ heavy-duty ramp gate with 3 hinges, rated 3,500 lb — our highest-rated gate, built for compact tractors and loaders. Usually paired with a dovetail deck, but not required. |
| HD Package (Ramp + Brakes + Jacks + Spare) | HD ramp, additional brake axle, stabilizer jacks, and spare tire. Best value if ordering multiple options. |
| Electric Brakes — Per Axle | Adds electric brake assembly to a single axle. Required on tandem trailers over 3,000 lb payload in most states. |
| Torsion Axles — Per Axle | Independent torsion suspension for a smoother ride and less load transfer. Preferred for equipment hauling. |
| 4″ Drop Axle | Lowers the deck height 4 inches. Useful for low-clearance equipment or riding mowers. |
| 2 ft Dovetail | Angled rear deck section for easier drive-on loading of wheeled and tracked equipment. |
| Additional Rail Height — Per Linear Ft | Add 6 inches to the wall height for full-length containment on tall or bulky loads. |
| Add Tandem Axle Conversion | Upgrade a single-axle Woody to tandem. Includes second Terran EZ-Lube axle, spring suspension, and 7-way connector. |
I've had steel trailers my whole career. Rust, paint, always something. The Woody is the first trailer I've owned that actually gets easier to use every year — not harder.
3-YEAR LIMITED WARRANTY · TERRAN EZ-LUBE AXLES · BUILT IN MICHIGAN · LESS THAN 3 WEEKS LEAD TIME
